Copper Products

Our organization Rajasthan Metals is offering a world class collection of Copper Fittings to the esteemed clients of the domain, which is known for high mechanical strength, tensile strength and applied in various industries. These products are manufactures using high-grade copper that is procured from the trusted vendors of the domain.

The specifications of our range of copper are as under:

• ISS-2501
• DHP-I&DHP-II
• BSS-2871 -C-106 / C-107 / C-101, 2874-C- 106 / C-108 / C-109, 2874
• CA- 104 2501 DPA, 2501 DPA, 2501 ETP, 1545, 4171, 288, 613.

Specifications :

• O. D. (mm): 6 to 104
• Thickness (mm) : 0.50" to 1.626"
• Copper Alloy no. C12200
• Standard:ASTM EN-1057

Shapes

• Rectangular
• Square

Sizes

• 75 mm in length
• 75 mm width

Forms

• Elbows
• Couplings
• Reducers
• UBends
• Tees and many more

The company is one of the major Manufacturers, Exporters and Suppliers of Copper Coils in Thane (India) with a reputation of product excellence and reliability. The wide range of high quality, soft annealed, single/double layer, plain and plastic coated Copper Coils are used in diverse applications. Superior dimensional control of the Copper Coils offers trouble free performance and cost saving. The Copper Coil ends are capped at both ends to maintain the standard of cleanliness. The company delivers high quality plastic coated Copper Coils designed for protection against aggressive environment and color coded to aid identification.

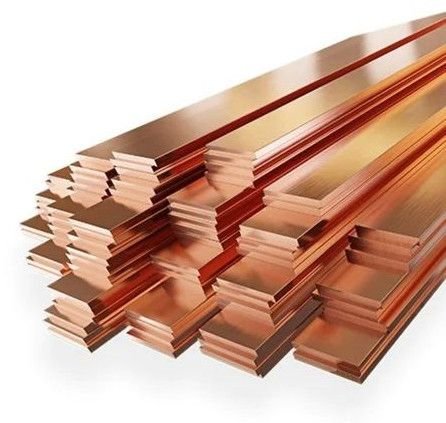

We Supply Stringent Quality Copper Flats to Various Regions of India. Furthermore, Our Superior Quality Copper Flats are Highly Resistant to Corrosion and Rust. We also have Electrolytic as Well as Commercial Quality.

Applications :

• Automobiles and railways
• Wide Range of Electrical Industries. eg. Switch gears, Connectors etc.
• Transformers & Circuit Breaker Terminals
• Electrical Holders & Clamps
• Distillation & Sugar Industry

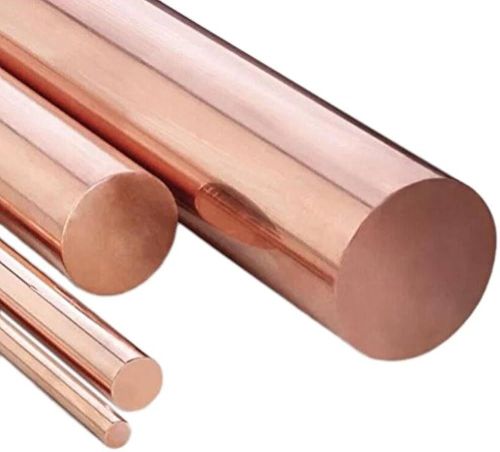

We are One of the Preferred Supplier and Wholesaler of Copper Rods. On the Basis of High Quality Products Offered By Us, We have Occupied a Standard Market Place in India. Our Copper Rods are Widely Used for Forming Electric Panels, Anodes Etc. These Copper Rods are Available in all Sizes and Shapes. We also have Electrolytic and Commercial Quality in It.

Applications :

• Electrical Engineering
• Panels earthing,
• Electrification lines
• Anodes
• Components
• Auto Components

We supply stringent quality Copper Sheets to various regions of India. Copper sheets supplied and wholesaled by our firm is of robust and tough quality. Furthermore, our superior quality copper sheets are highly resistant to corrosion and rust.

We supply HIGH quality Copper Strips in various regions of India. Our flawless copper strips are highly used for effective and everlasting usage. So come forth and avail the opportunity of purchasing durable quality copper strips as per your requirements and grades.

Beryllium copper alloy is a high strength alloy with non-sparking and non-magnetic qualities. The alloy supports outstanding metalworking, forming and machining and is suitable for the shafts of seam welding machines, for electrode holders, inserts for dies and load bearing components.

Standards : Indian Standard: IS 8365

International Standards : ASTM B196 C-17200, DIN 17672 WN2.1247, ISO CuBe2, BS EN CW101C

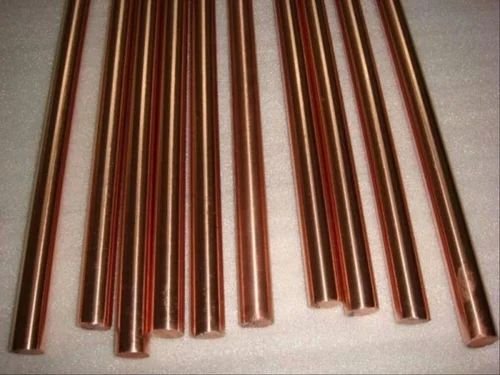

Chromium zirconium copper alloy is used in areas where good mechanical properties are required to work in high electrical and thermal conductivity. This is a high strength, seam, high conductivity alloy for spot, butt and projection welding which is ideal for plain as well as coated and galvanized sheets.

Standards :

• Indian Standard: IS 8365
• International Standards: ASTM C-18150, DIN 17666 WN 2.1293, BS 2874 CC 102, ISO CuCrZr, BS EN CW106C

Chemical Composition :

• Cr = 0.5 -1.2 %
• Zr = 0.03 -0.30%
• Cu = Balance

Tellurium Copper Alloy is known for its high conductivity (90% IACS) and high machinability (90) which makes it ideal choice for making electrical parts that require extensive machining especially on automatic/CNC machines. Also, this range is highly suitable for gas nozzles and electrical components.

International Standards : ASTM B301 C-14500, DIN 17666 WN 2.1546, BS 2874 C 109, ISO CuTe, BS EN CW118C

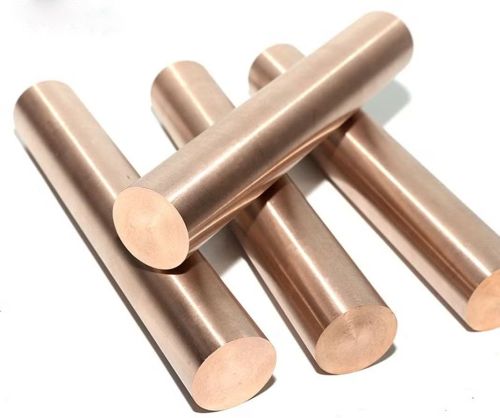

Zirconium Copper Alloy is a moderate strength, high conductivity alloy used for spot and seam welding of rotor bars & rings for electric motors, aluminum alloys & bronzes, switches and circuit breakers.

Standards :

• Indian Standard: IS 8365
• International Standards: ASTM C-15000, DIN 17666 WN 2.1580, BS 2874 CW 120 C, ISO CuZr, BS EN CW120C
